Expertise
With over 520 employees, our company can look back on more than 100 years of success. What makes us special? Our know-how and innovation in large machine tool construction.
We have set ourselves the task of manufacturing large, high-precision milling, grinding and turning machines and produce XXL machines for customers from all over the world.
Hello
WALDRICH COBURG Milling
We at WALDRICH COBURG have been setting standards with our milling machines for over 50 years.
We are continuously working on the further development of our gantry machining centers.

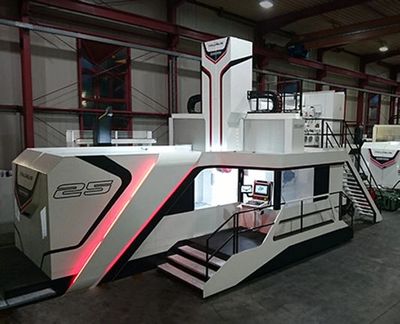

Taurus
The compact and dynamic portal milling machine
The series offers a robust design combined with
high milling performance.
The long-term accuracy and stability of the milling machine open up a wide range of economic applications in mechanical engineering, die and mold making, and medium-sized gas and diesel engines.
The TAURUS gantry has a thermo and force symmetrical design and is equipped with hydrostatic guiding systems. This enables the combination of heavy machining and the achievement of the highest precision. The resulting long-term accuracy and stability of the milling machine sustainably open up a wide range of economical applications.
- Power [kW]45 / 63 (S1 /S6) | M 4–1 70 | US-HF‑1
- Clearance width [mm]3.000 — 4.500
- Clearance height [mm]1.000 — 3.500
- Setup length [mm]3.000- 10.000
Taurus Gemini
The most flexible solution among milling machines
As a length-scalable machine, it combines the enormous stability of a heavy roughing machine with the high dynamics of a finishing machine, coupled with the precision of WALDRICH COBURG. It is ideally suited for die and mold making, mechanical engineering, and the highly productive machining of structural components made of aluminum.
As a length-scalable bridge gantry, it combines the enormous stability of a heavy roughing machine with the high dynamics of a finishing machine, coupled with the accuracy of a WALDRICH COBURG machine.
- Power [kW]45 / 63 (S1 /S6) | M 4–1
70 | US-HF‑1 - Clearance height [mm]2.230 | M4‑1
2.480 | US-HF‑1 - Table widht [mm]3.000
- Table lenght [mm]4.500 — 10.500
MasterTec
The modular portal milling machine
The MasterTec is the portal machining center for medium-sized and medium-heavy workpieces in modular design. The user industries of this milling machine are tool and general engineering, power plant and turbine construction, diesel engine construction, as well as printing machine and plastics machine construction.
- Power [kW]63 / 80
- Clearance width [mm]3.000 — 6.000
- Clearance height [mm]1.500 — 5.500
- Setup lenght [mm]3.000 — 10.000
PowerTec
The largest and most powerful portal milling machine
The PowerTec is the largest and most powerful gantry machining center from WALDRICH COBURG. The modular construction kit of this series is very wide-ranging. In addition to the usual size adaptations, the PowerTec can be designed as a table or gantry machine.
Other configuration options for the milling machine include a fixed or height-adjustable crossbeam; single‑, double-table or pallet design, or even the integrated rotary table. Alternatively with 3 + 2 axes or 5‑axes. Different milling supports, in combination with the highly developed WALDRICH COBURG machining units and automatic changing systems for tools and spindle units, ensure efficient machining of a wide variety of workpieces.
The user industries are, for example, power plant and turbine construction, diesel engine construction or general mechanical engineering.
- Power [kW]80 / 105 / 130
- Clearance width [mm]5.500 — 10.000
- Clearance height [mm]2.500 — 10.000
- Setup lenght [mm]> 2.500
Hello
WALDRICH COBURG Turning
Vertical lathes have been part of our product range since 1997. We are continuously developing these. We also manufacture combined machines with milling and turning supports.
Vertical lathe ValuTurn
Compact and precise
The vertical turning machining center is designed as a portal construction. The 2 columns and the crossbeam respective the traverse form a closed frame with the foundation, which provides high rigidity and accuracy.
The capability for complete machining can be expanded with the optional movable rotary table (Y‑axis), enabling off-center machining of complex workpieces.
A large number of different tool carriers and spindle units enable efficient machining of a wide variety of workpieces. The machining units are swapped in according to the masterhead principle. Depending on the requirements, highly developed exchange systems for machining units and tools are available.
- Power [kW] 75 / 100
- Turning diameter [mm] 2.000 — 4.500
- Turning height [mm] 1.000 — 3.500
Vertical lathe and machining center PowerTurn
For the toughest challenges
The PowerTurn is the largest and most powerful vertical turning machining center.
As standard in portal or double column design. As with the ValuTurn and MultiTurn, all expansion stages up to a movable rotary table are available.
On the PowerTurn, you will machine your largest workpieces with the highest efficiency and accuracy.
- Power [kW] 100 / 150 / 200 / 300
- Turning diameter [mm] 5.000 — 14.000
- Turning height [mm] 3.000 — 12.000
Hello
WALDRICH COBURG Grinding
We have been manufacturing grinding machines for over 55 years. These are continuously developed and set standards.
WayGrind
The world’s most precise grinding machine in XXL
The WayGrind is not just a grinding machine—it is the most precise large machine tool in the world. It ensures perfect guideways and maximum precision throughout the international machine tool industry.
Its range of applications is impressive: in addition to gray cast iron and steel components, the WayGrind also processes hard materials such as granite, ceramics, and polymer concrete—ideal for measuring machines and measuring plates.
And that’s not all: fully automatic grinding of base plates for multiple tools in injection molding machines or plates in fixture construction is also one of its strengths. Maximum precision, maximum versatility—that’s WayGrind.
- Power [kW] 22 / 50
- Setup lenght [mm] 2.000 — 15.000
- Clearance height [mm] 1.000 — 3.500
- Clearance width [mm] 1.250 — 4.100
- Grinding support 1 | 2
